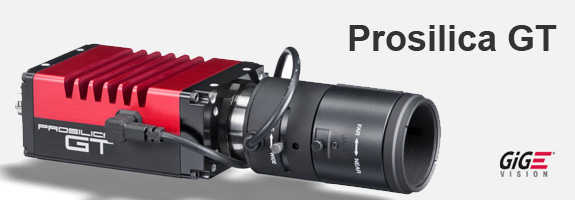

NEW Prosilica GT: Digital cameras for extreme environments – GigE Vision®
The Prosilica GT are compact digital cameras designed for imaging in extreme temperatures (from -20°C to 60°C) and fluctuating lighting conditions. The Prosilica GT cameras feature Precise and DC Auto Iris, as well as PoE and the latest CCD sensor technology making them ideal for a wide range of demanding applications including ITS & traffic imaging, machine vision, industrial inspection, security, surveillance, military applications and more.
- Sony EXview HAD CCD and Kodak KAI quad tap sensors
- Gigabit Ethernet interface (GigE Vision®)
- 1 to 6 Megapixel
- Fast frame rates to 53fps
- Auto Iris (P-Iris and DC)
- Power over Ethernet (PoE)
- Ethernet surge suppression
- Gamma
- Multiple LUT
- Color correction
- Metadata (Chunk data)
- Clock synchronization (IEEE1588)
- Wide operating temperature range
Specification
| Prosilica GT |
1290 |
1380 |
1600 |
1910 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
1280 x 960 |
1360 x 1024 |
1620 x 1220 |
1920 x 1080 |
| Sensor |
Sony ICX445 |
Sony ICX285 |
Sony ICX274 |
Kodak KAI-02150 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 1/3 |
Type 2/3 |
Type 1/1.8 |
Type 2/3 |
| Cell size |
3.75 µm |
6.45 µm |
4.4 µm |
5.5 µm |
| Lens mount |
C-Mount |
| Max frame rate at full resolution |
33 fps |
30 fps |
25 fps |
53 fps |
| On-board FIFO |
128 MB |
|
Output |
| Bit depth |
8/14 bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| TTL I/Os |
1 input, 2 outputs |
| Opto-coupled I/Os |
1 input, 2 outputs |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Operating temperature |
-20°C ... +60°C |
| Power requirements (DC) |
8-26 V DC |
| Power consumption (12 V) |
tba |
| Mass |
211 g |
211 g |
211 g |
224 g |
Body Dimensions
(L x W x H in mm) |
83.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
83.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
83.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
92 x 53.3 x 33 (including connectors, w/o tripod and lens) |
| Regulations |
CE, FCC Class A, RoHS |
| Prosilica GT |
1920 |
2300 |
2450 |
2750 |
| Interface |
IEEE 802.3 1000baseT |
| Resolution |
1936 x 1456 |
2336 x 1752 |
2448 x 2050 |
2750 x 2200 |
| Sensor |
Sony ICX674 |
Kodak KAI-04050 |
Sony ICX625 |
Sony ICX694 |
| Sensor type |
CCD Progressive |
| Sensor size |
Type 2/3 |
Type 1 |
Type 2/3 |
Type 1 |
| Cell size |
4.54 µm |
5.5 µm |
3.45 µm |
4.54 µm |
| Lens mount |
C-Mount |
| Max frame rate at full resolution |
39 fps |
27 fps |
15 fps |
18 fps |
| On-board FIFO |
128 MB |
|
Output |
| Bit depth |
8/14 bit |
| Mono modes |
Mono8, Mono12Packed, Mono16 |
| Color modes YUV |
YUV411, YUV422, YUV444 |
| Color modes RGB |
RGB24, BGR24, RGBA24, BGRA24 |
| Raw modes |
Bayer8, Bayer12Packed, Bayer16 |
|
General purpose inputs/outputs (GPIOs) |
| TTL I/Os |
1 input, 2 outputs |
| Opto-coupled I/Os |
1 input, 2 outputs |
| RS-232 |
1 |
|
Operating conditions/Dimensions |
| Operating temperature |
-20°C ... +60°C |
| Power requirements (DC) |
8-26 V DC |
| Power consumption (12 V) |
tba |
| Mass |
224 g |
229 g |
211 g |
224 g |
Body Dimensions
(L x W x H in mm) |
92 x 53.3 x 33 (including connectors, w/o tripod and lens) |
92 x 53.3 x 33 (including connectors, w/o tripod and lens) |
83.2 x 53.3 x 33 (including connectors, w/o tripod and lens) |
92 x 53.3 x 33 (including connectors, w/o tripod and lens) |
| Regulations |
CE, FCC Class A, RoHS |
CE, FCC Class A, RoHS |
CE, FCC Class A, RoHS |
CE, FCC, Class A, RoHS |
|
